Air Handlers

The air handler is the indoor component of a heat pump system. It includes the fan and the heating/cooling coil. The air handler is designed for a particular refrigerant, so it must be matched with the heat pump or air conditioner.

We offer many air handlers with variable and multi-speed features that can provide enhanced indoor comfort by slowly ramping up to your thermostat setting rather than simply turning on at full speed. This alleviates the "cold air blow" often associated with single speed air handlers, and dramatically reduces system noise.

Air Handler Product Offering

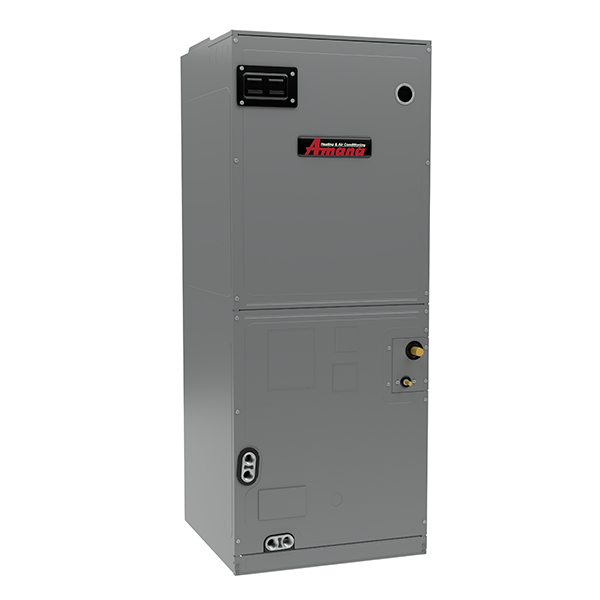

Multi-Position, Variable-Speed Air Handler

  • Model Family: AVPEC

    Refrigerant Type: R-410A

    Blower Motor: Variable-speed ECM blower motor

    Factory Warranty Parts: 10-Year Parts Limited Warranty

    Manufacturer's Stated Benefits:

    • Electronic Expansion Valve (EEV) for cooling and heat pump applications

    • Provides constant CFM over a wide range of static pressure conditions independent of duct system

    • Improved humidity and comfort control

    • Horizontal or vertical configuration capabilities

    • 2 to 5 tons

    • ComfortNet® Communicating System compatible

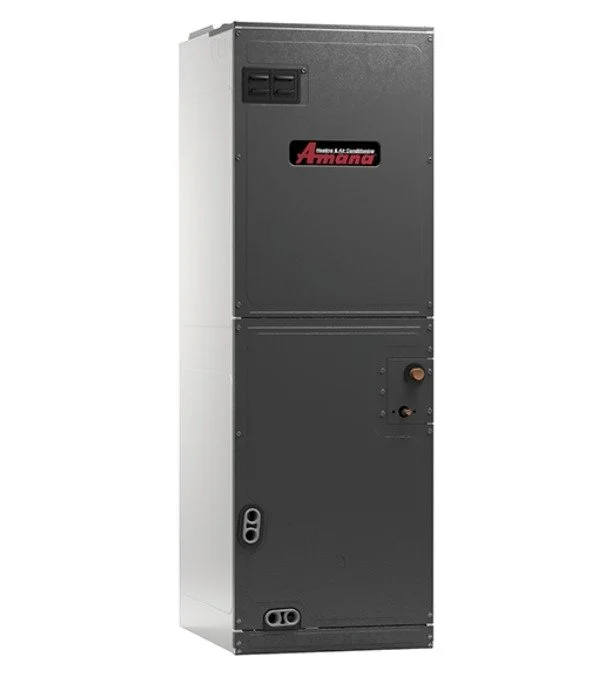

Air Handler Multi-Position, Variable Speed

  • Model Family: AVPTC

    Refrigerant Type: R-410A

    Blower Motor: Variable-speed ECM blower motor

    Factory Warranty Parts: 10-Year Parts Limited Warranty

    Factory Warranty Compressor: 10-Year Limited Parts Warranty

    Manufacturer's Stated Benefits:

    • ComfortNet™ Communicating System compatible

    • New SmartFrame™ cabinet construction

    • Factory-installed thermal expansion valves for cooling and heat pump applications

    • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient

    • Up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation

    • Auto configuration of the airflow and tonnage in communicating mode

    • CFM indicator

    • Maximum four low-voltage wires required for operation in communicating mode

    • Improved humidity control and comfort

    • Compatible with heat pumps and variable-capacity cooling units

Energy-Efficiency Air Handler

  • Model Family: ASPT

    Refrigerant Type: R-410A

    Blower Motor: Direct drive, multi-speed ECM blower motor

    Factory Warranty Parts: 10-Year Parts Limited Warranty

    Manufacturer's Stated Benefits:

    • All-Aluminum evaporator coil

    • Transformer & blower time-delay

    • Factory-installed internal TXV valve

    • New SmartFrame™ cabinet construction

    • Galvanized, leather grain-embossed finish

    • Suitable for horizontal, vertical, upflow, or downflow installations

    • Glue-less cabinet insulation retention

    • Coil-mounting track for quick repositioning

    • Improved condensate management

    • Screw-less sides & back prevents condensation

    • Tool-less filter access accommodates standard-size filters

    • Compatible with heat pump and variable-capacity cooling units

Energy-Efficiency Air Handler

  • Model Family: ARUF

    Refrigerant Type: R-410A

    Blower Motor: Direct-drive, multi-speed motor allows air volume variation for heating and cooling applications

    Factory Warranty Parts: 10-Year Parts Limited Warranty

    Manufacturer's Stated Benefits:

    • All-aluminum evaporator coil

    • Check flowrater expansion device for cooling-only and heat pump applications

    • Transformer and blower time-delay on all units

    • New rigid SmartFrame™ cabinet

    • Galvanized leather-grain embossed finish

    • Glue-less insulation retention

    • Solid door screw foundation

    • Improved condensate management

    • Screw-less sides & back prevents condensation

    • Three-hole condensate pan

    • Multiple electrical knockouts

    • Multi-position capability: upflow, downflow, horizontal or vertical

    • Coil-mounting track for quick repositioning

    • Tool-less filter access accommodates standard-size filters

    • AHRI Certified; ETL Listed
